4 Ports工业电脑KVM切换器，PiP/PbP分割画面，USB Hub，鼠标漫游，双向音源，无缝切换，序列端口切换，Serial控制，QSKEP-Q2014

Model Name

QSKEP-Q2014

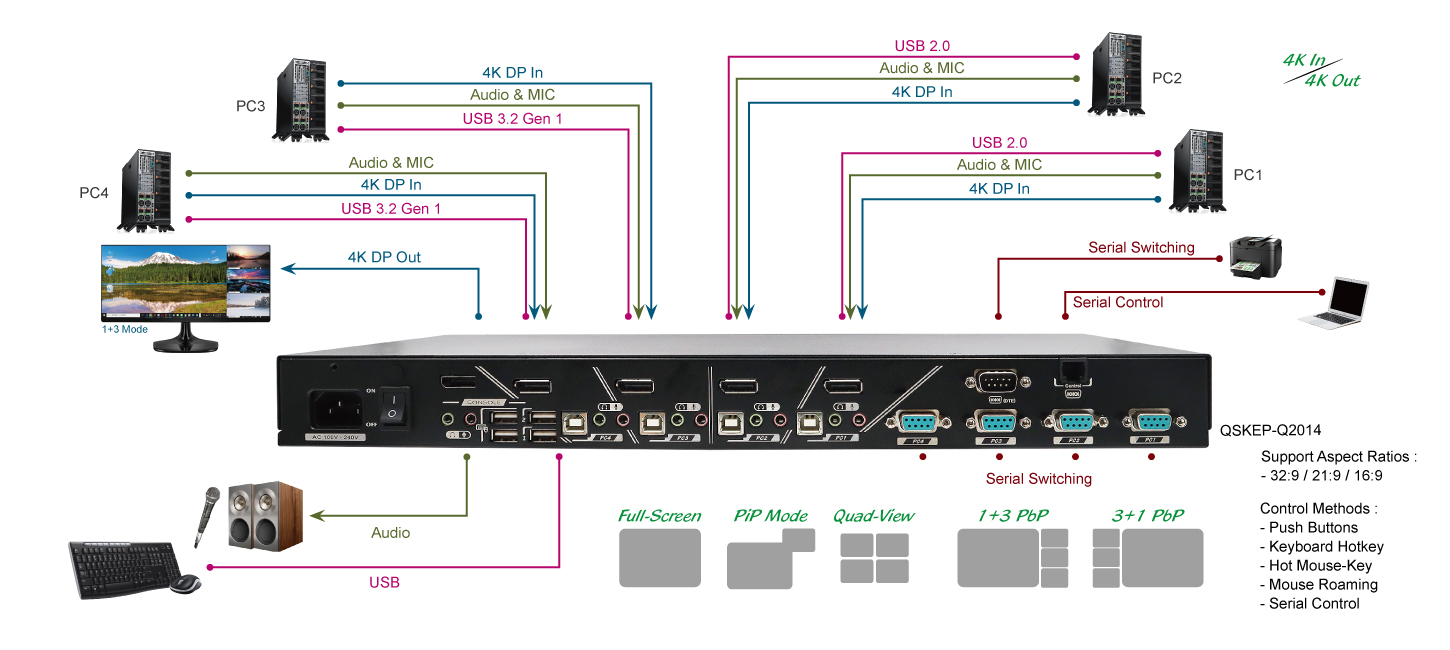

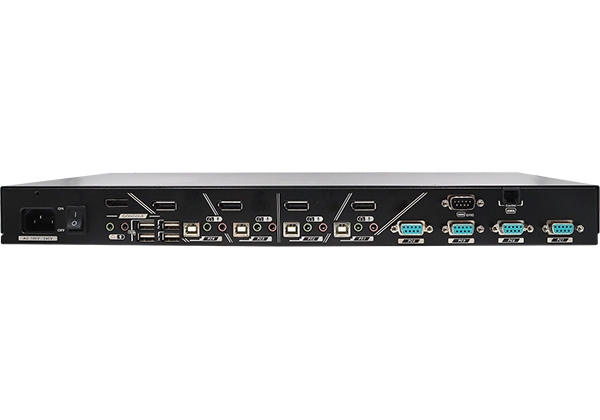

  Computer/Server Ports (input)

DisplayPort x 4 (Single Video x 4 PCs)
USB 2.0 Type B x 4
3.5mm Speaker Jack x 4 ( In )
3.5mm Microphone Jack x 4 ( Out )
Serial x 4 (DB9) (DCE)

  Console Ports (output)

DisplayPort x 1
USB 2.0 Type A x 2 ( Rear )
USB HID Type A x 2 ( Rear )
3.5mm Speaker Jack x 1 ( Out )
3.5mm Microphone Jack x 1 ( In )
Serial x 1 (DB9) (DTE)

  Video Resolution (Max.)

3840 x 2160@30Hz ( 4:4:4 ) ( 16:9 )
2560 x 1440@60Hz ( 4:4:4 ) ( 16:9 )
1920 x 1080@60Hz ( 4:4:4 ) ( 16:9 )
3840x1600@30Hz ( 4:4:4 ) ( 21:9 )
3440x1440@50Hz ( 4:4:4 ) ( 21:9 )
2560 x 1080@60Hz ( 4:4:4 ) ( 21:9 )
3840x1080@60Hz (4:4:4 ) ( 32:9 )

  Serial Switch

Yes

  Serial Control

RJ11 x 1
( Default = 19,200bps, 8-Bands Selections )

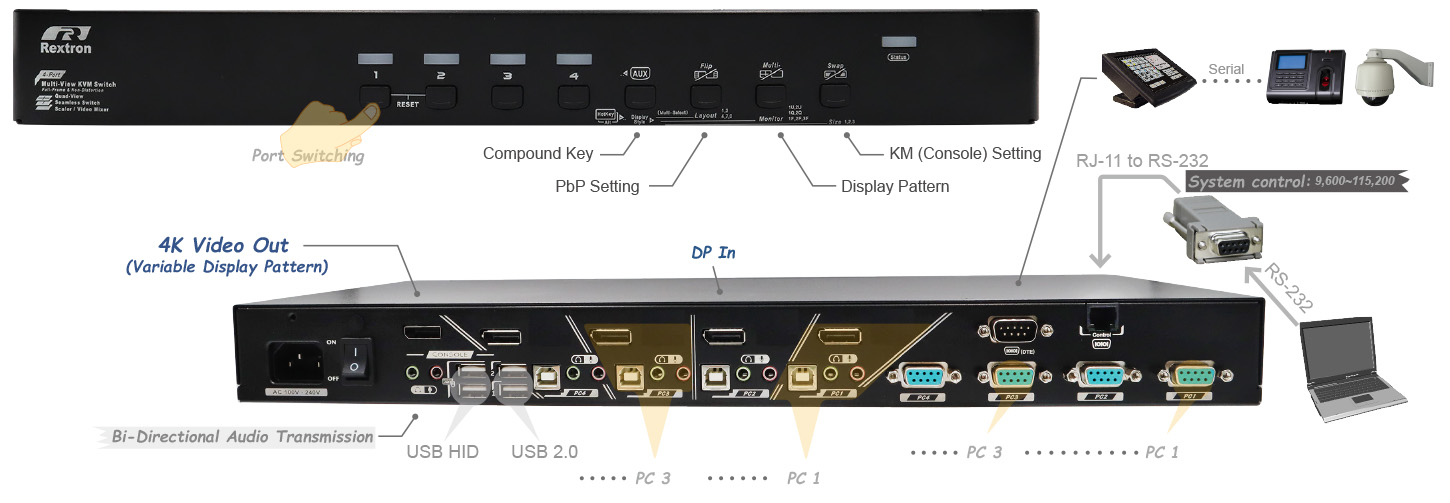

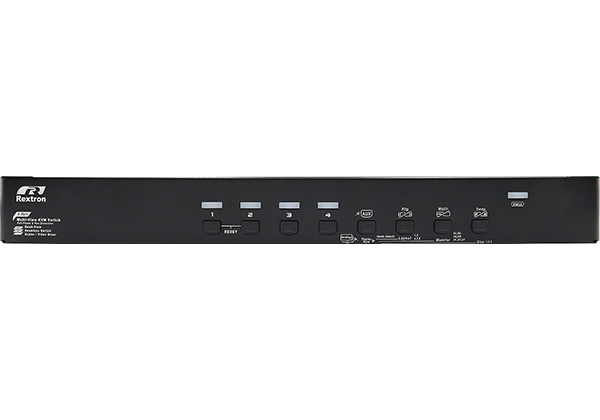

  Push Buttons

Port Selection x 4
View Configuration x 4

  Control Methods

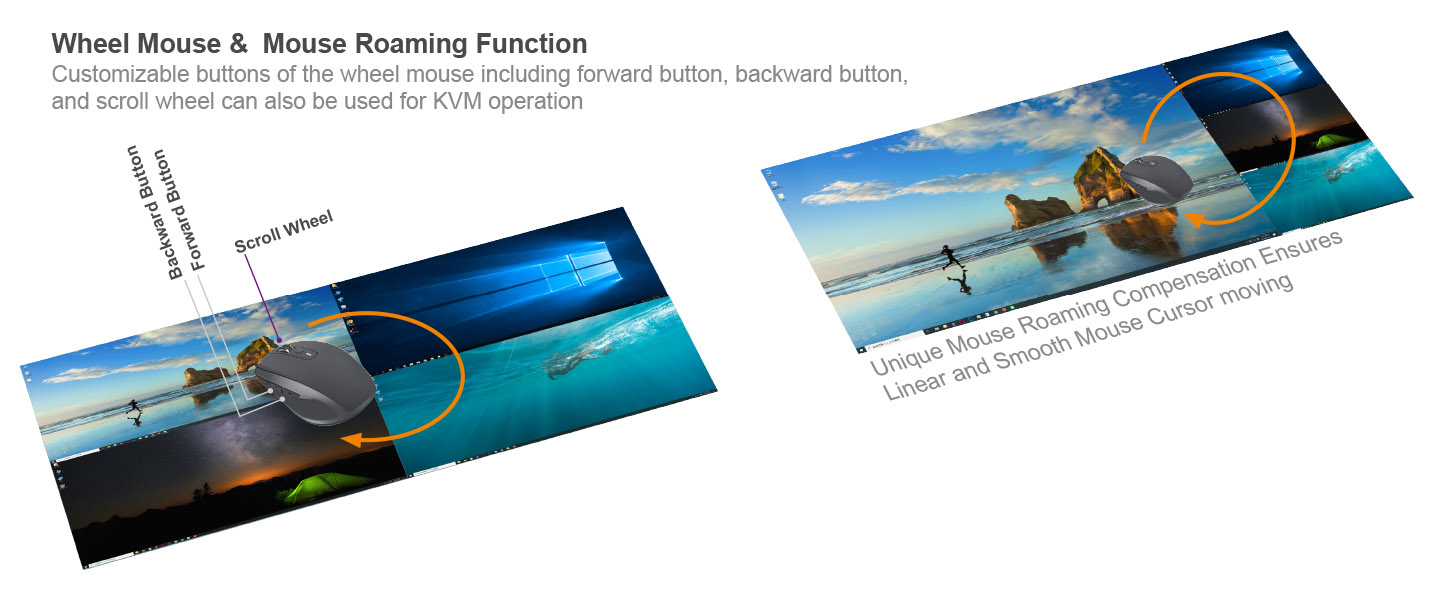

Mouse Roaming / Hotkey / Push Button / Serial / Hot Mouse-Key

  LED Indicator (Power / Status)

PC-Ready / PC-Select x 4
System Status x 1

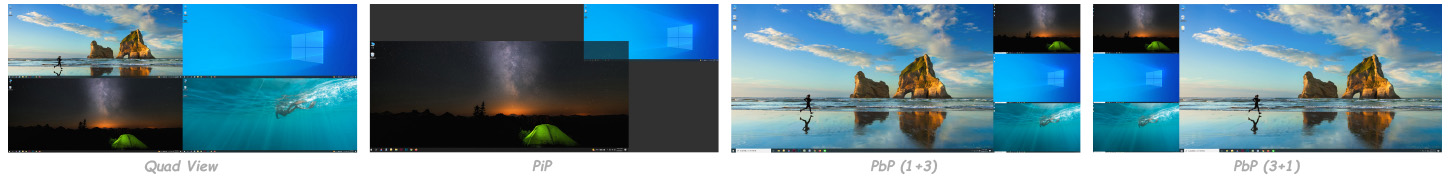

  Display Modes ( Layouts )

Single-View / Quad-View / PiP Mode
/ 1+3 Mode / 3+1 Mode

  Unique Functions

Full-Frame Multiview
Seamless Switch ( less than 1s )
Support 16:9, 21:9, 32:9 Displays

  HDCP Compliance

HDCP 1.4

  HDCP Engine

Yes

  Power Supply

DC 9~12V

  Operation Environment

0~40&deg;C, Humidity<80%

  Storage Temperature

-20~60&deg;C

  Enclosure

Metal

  H x W x D (mm)

44 x 440 x 180 ( 1U )

  Weight (g)

2000
